12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle

Type : TFT

Display Size : 12.1inch

Supplier Type : Original Brand

Place of Origin : China

Brand Name : NEC

Panel Type : a-Si TFT-LCD, LCM

Resolution : 1024x768

Module Outsize(mm) : 260.5 x 203 x 9.2 (HxVxD)

Viewing Angle : 88/88/88/88 (Typ.)(CR 10)

Brightness : 450cd/m2

Interface : LVDS

Touch panel : Withtout

Application : Industrial Equipment

MPQ : 10pcs

Warranty : 12 Months

Price : $300/pieces 1-99 pieces

Contact Now

Products Description

Panel Model	NL10276BC24-21	Panel Brand	NEC
Size (inch )	12.1inch	Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 105PPI	Pixel Format	RGB Vertical Stripe
Module Outsize(mm)	260.5(W)×203(H) ×9.2(D) mm	Display Mode	TN, Normally White, Transmissive
LCD Active area(mm)	245.76(W)×184.32(H) mm	Response Time	3/15 (Typ.)(Tr/Td)
Display Colors	262K/16.7M 40% NTSC	Light Source	4 strings WLED , 70K hours , Optional
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Touch Screen	Without
Brightness	450 cd/m² (Typ.)	Power Supply	3.3V (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)	Used for	Industrial
Frame Ratio	60Hz	Enviroment	Storage Temp.: -30 ~ 80 °C
Frame Ratio	60Hz	Enviroment		Operating Temp.: -30 ~ 80°C
			Vibration Level: 2.0G (19.6 m/s²)
LCM Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector	FPC connector	JAE, FI-SE20P-HFE, Pitch 1.25mm

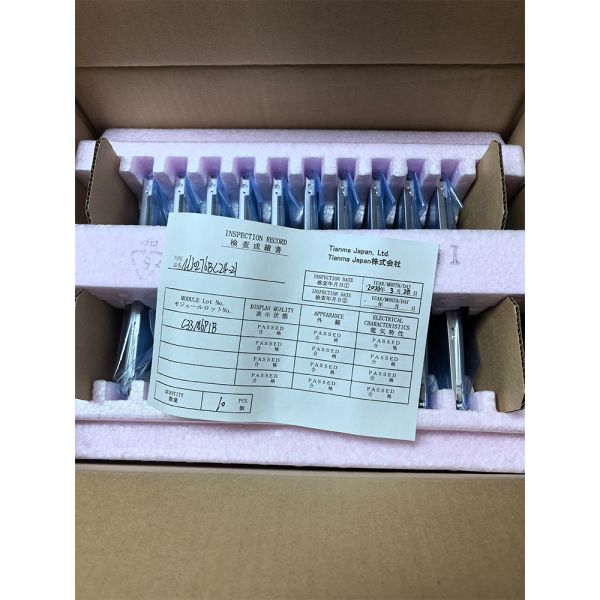

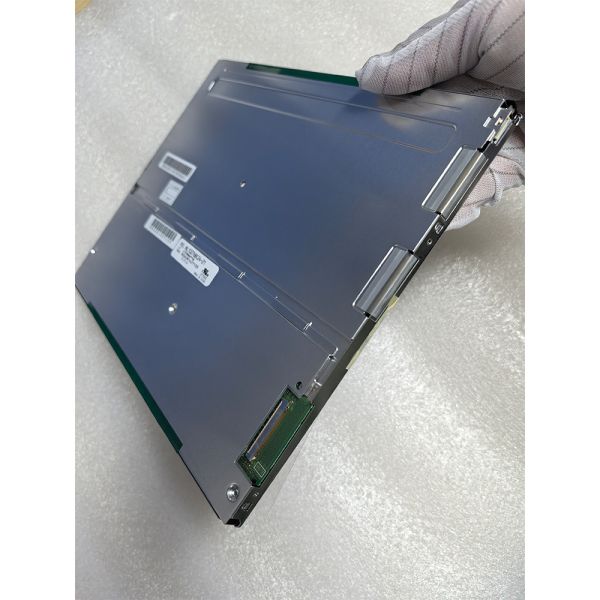

Details Images

12.1-Inch a-Si LCD Screen Panel 1027x768 XGA Resolution Industrial IPS TFT Display Module with 88/88/88/88 Viewing Angle

Company Profile

FAQ

Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
