800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products

Type : TFT

Display Size : 6.5inch

Supplier Type : Original Brand

Place of Origin : China

Brand Name : AUO

Panel Type : a-Si TFT-LCD, LCM

Resolution : 640(RGB)x480, VGA 122PPI

Module Outsize(mm) : 153(W)*118(H)*11.2(D) mm

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Brightness : 800cd/m2

Interface : LVDS (1 ch, 6/8-bit) , 20 pins Connector

Touch panel : Withtout

Application : Industrial Equipment, Outdoor High Brightness

MPQ : 80pcs

Warranty : 12 Months

Price : $82/pieces 1-99 pieces

Contact Now

Products Description
Panel Model
G065VN01 V221
Panel Brand
AUO
Size (inch )
6.5inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
640(RGB)×480, VGA 122PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
153(W)×118(H) ×11.2(D) mm
Display Mode
AHVA, Normally Black, Transmissive
LCD Active area(mm)
132.48(W)×99.36(H) mm
Response Time
10/15 (Typ.)(Tr/Td) ms
Display Colors
262K/16.2M 55% NTSC
Light Source
WLED , 70K hours , With LED Driver
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
800 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Used for
Industrial, Outdoor High Brightness
Frame Ratio
60Hz
Enviroment
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -30 ~ 80°C
LCM Interface Type
LVDS (1 ch, 6/8-bit) , 20 pins Connector
FPC connector
STM, MSB24013P20, Pitch 1.0mm

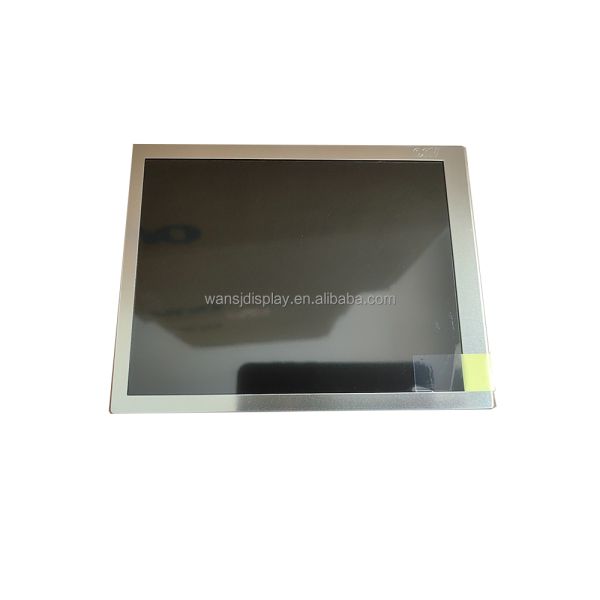

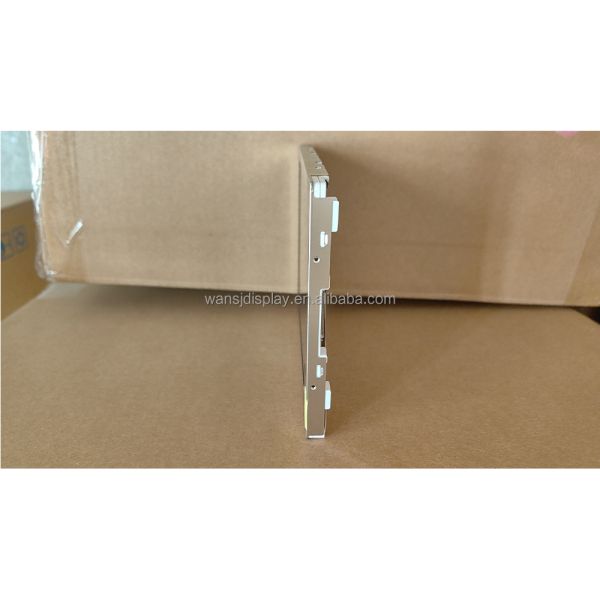

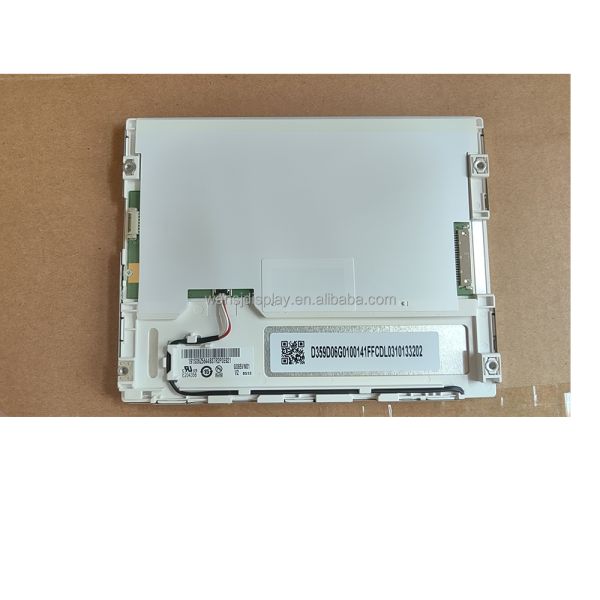

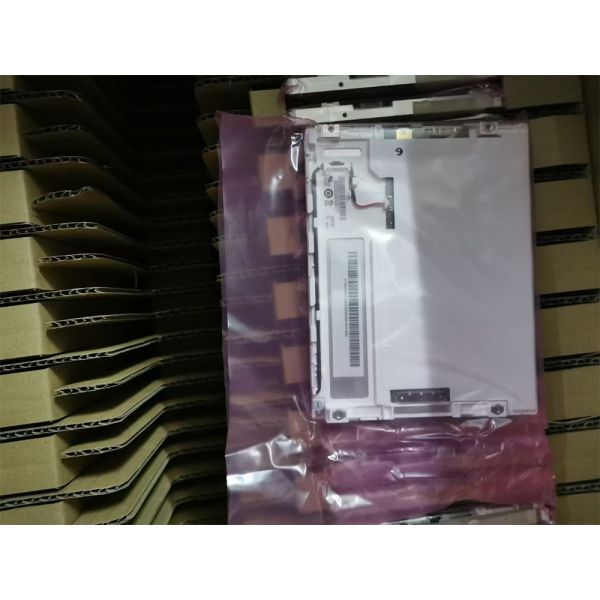

Details Images
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
Company Profile
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
800cd/m2 Brightness 6.5 Inch Wide Temperature VGA TFT-LCD Module 640x480 Resolution Industrial Screen Panel for Products
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
