Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module

Product Categories
Shenzhen Wanshujie Photoelectric Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module

Type : TFT

Display Size : 8.4inch

Supplier Type : Original Brand

Place of Origin : China

Brand Name : Sharp

Panel Type : a-Si TFT-LCD, LCM

Resolution : 800(RGB)x600, SVGA 119PPI

Module Outsize(mm) : 199.5(W)x154(H)x12.45(D) mm

Viewing Angle : 65/65/60/55 (Typ.)(CR≥10)

Brightness : 330cd/m2

Interface : LVDS (1 ch, 6/8-bit) , 20 pins Connector

Touch panel : Withtout

Application : Industrial Equipment

MPQ : 20pcs

Warranty : 12 Months

Price : $115/pieces 1-99 pieces

Contact Now

Products Description
Panel Model
LQ084S3LG03
Panel Brand
Sharp
Size (inch )
8.4inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
800(RGB)×600, SVGA 119PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
199.5(W)×154(H) ×12.45(D) mm
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
170.88(W)×128.16(H) mm
Response Time
35 (Typ.)(Tr+Td)
Display Colors
262K/16.7M
Light Source
WLED , 50K hours , With LED Driver
Viewing Angle
65/65/60/55 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
330 cd/m² (Typ.)
Power Supply
3.3V (Typ.)
Contrast Ratio
450:1 (Typ.) (TM)
Used for
Industrial
Frame Ratio
60Hz
Enviroment
Storage Temp.: -30 ~ 75 °C
Operating Temp.: -30 ~ 75°C
Vibration Level
2.0G (19.6 m/s²)
LCM Interface Type
LVDS (1 ch, 6/8-bit) , 20 pins Connector
FPC connector
HRS, DF19G-20P-1H, Pitch 1.0mm
Details Images

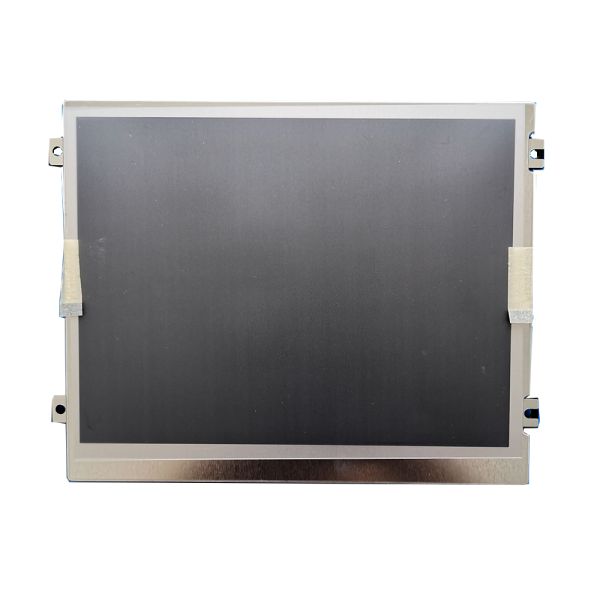

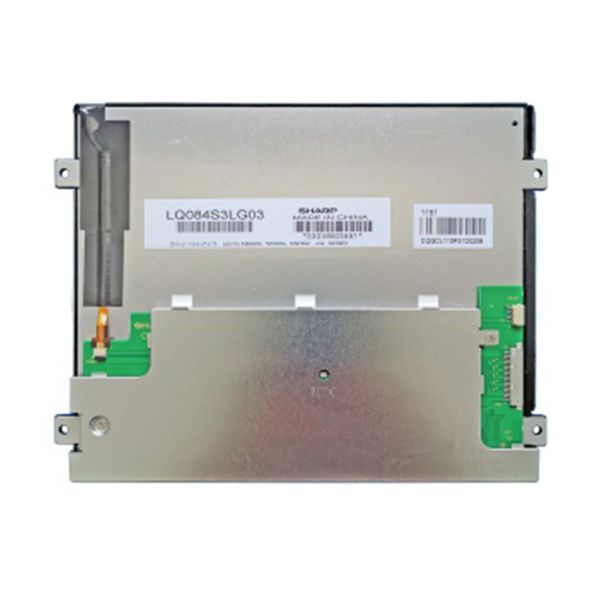

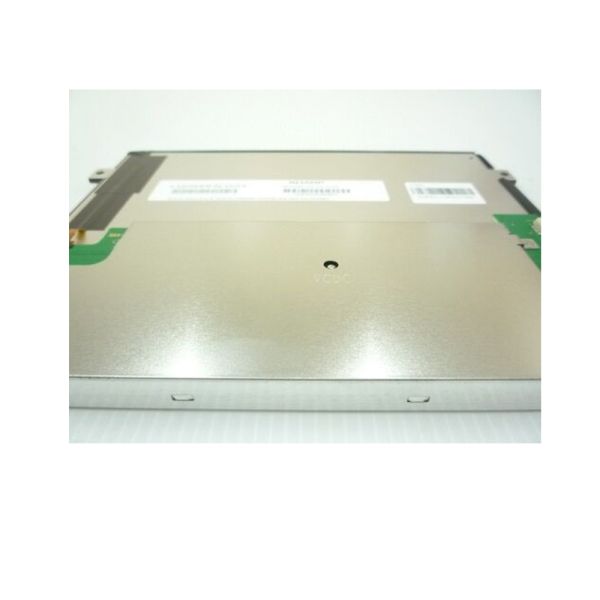

Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module
Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module
Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module
Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module
Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module
Company Profile
Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module
Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module
Sharp LQ084S3LG03 8.4 Inch 800x600 SVGA TFT-LCD Display Panel LVDS Interface Wide Temperature Vibration 2.G Industrial Module
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
