10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules

Type : TFT

Display Size : 10.4inch

Supplier Type : Original Brand

Place of Origin : China

Brand Name : Tianma

Panel Type : a-Si TFT-LCD, LCM

Resolution : 800x600, 96PPI

Module Outsize(mm) : 228.4(H)x175.4(V) x6.5(D) mm

Viewing Angle : 70/70/60/70 (Typ.)(CR 10)

Brightness : 350cd/m2

Interface : Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC

Touch panel : Withtout

Application : Industrial Equipment, Automotive

MPQ : 22pcs

Warranty : 12 Months

Price : $42/pieces 1-99 pieces

Contact Now

Products Description
Panel Model
TM104SDHG30-71
Panel Brand
Tianma
Size (inch )
10.4inch
Panel Type
a-Si TFT-LCD, LCM
Resolution
800(RGB)×600, SVGA 96PPI
Pixel Format
RGB Vertical Stripe
Module Outsize(mm)
228.4(W)×175.4(H) ×6.5(D) mm
Display Mode
TN, Normally White, Transmissive
LCD Active area(mm)
211.2(W)×158.4(H) mm
Response Time
10/15 (Typ.)(Tr/Td)
Display Colors
262K/16.2M 50% NTSC
Light Source
3S12P WLED , 30K hours , Without Driver
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Touch Screen
Without
Brightness
350 cd/m² (Typ.)
Power Supply
3.3/11.0/25.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Contrast Ratio
500:1 (Typ.) (TM)
Used for
Industrial, Automotive
Frame Ratio
60Hz
Environment
Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~ 70°C
LCM Interface Type
Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC
FPC connector
Pitch 0.5mm

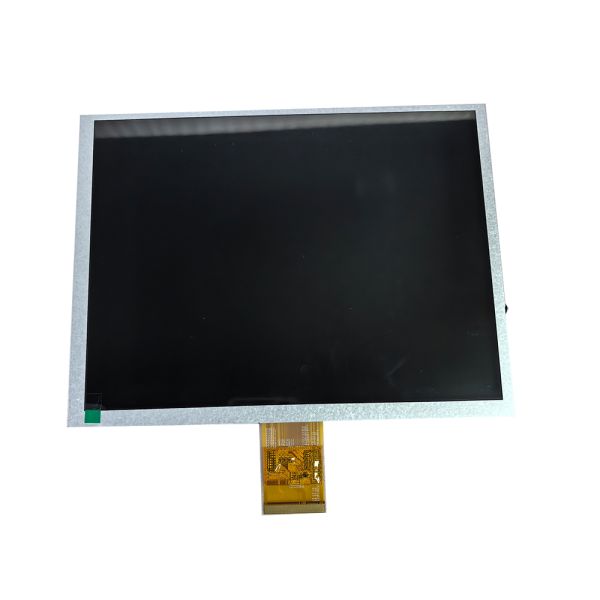

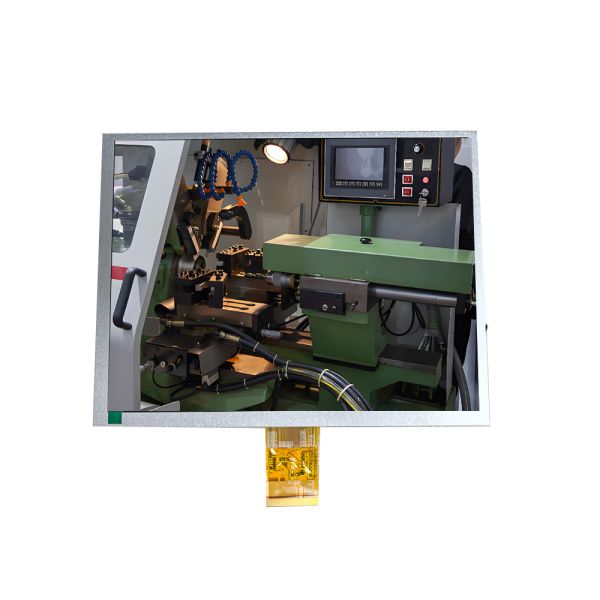

Details Images
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
Company Profile
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
10.4-Inch Display Size Tianma SVGA a-Si TFT-LCD Screen for Industrial Equipment 800x600 350nits RGB Interface WLED Modules
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
